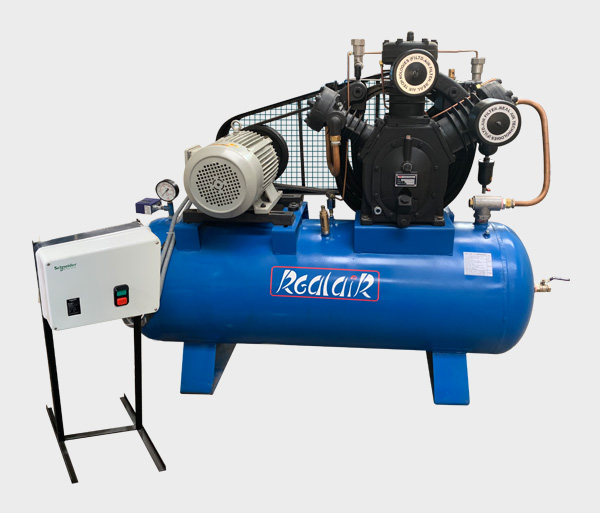

Special Design for Laser Cutting Application
(Output Air : No Water, No Oil)
| Model | Motor | Bore x Stroke (Inch) |
No. of Cylinder | Receiver Litre | Max. Pressure | Piston Displacement | |||
| H.P. | K.W. | Psig | Kg/cm2 | CFM | Ltr/min | ||||
| 20TH | 20 | 15 | 5" & 5" & 3" x 4" | 3 | 500 | 355 | 25 | 70 | 1982 |
| 20THD | 40 | 30 | 5" & 5" & 3" x 4" | 3 | 750 | 355 | 25 | 140 | 3965 |
| 30TH | 28 | 18.5 | 5.5" & 5.5" & 3.5" x 4" | 3 | 500 | 355 | 25 | 92.3 | 2633 |
| 247 | 5 | 3.70 | 4" & 2.50" x 2.75" | 2 | 200 | 175 | 12.30 | 17.30 | 490 |
| 2600 | 10 | 7.5 | 5" & 2.75" x 3.50" | 2 | 300 | 175/200 | 12.3/14.06 | 33.60 | 950 |
| 76T2 | 12.5/15 | 9.3/11 | 5.5" & 3" x 4" | 2 | 300 | 175/200 | 12.3/14.06 | 44/55 | 1245/1556 |
