Single-Stage-Air-Compressor

30S2

Single-Stage-Air-Compressor

20S2

Single-Stage-Air-Compressor

240

Single-Stage-Air-Compressor

20S2

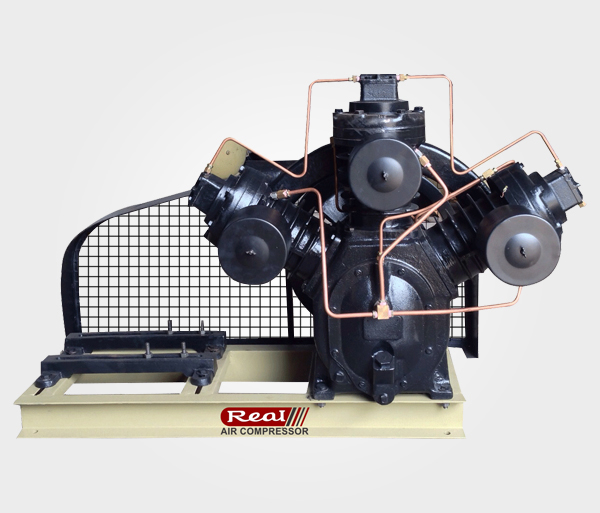

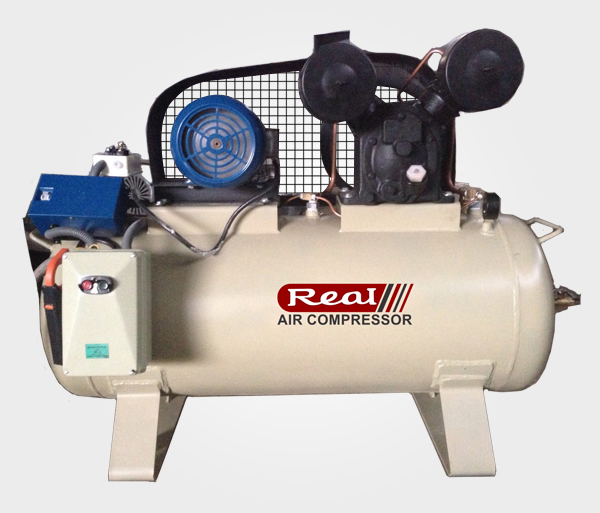

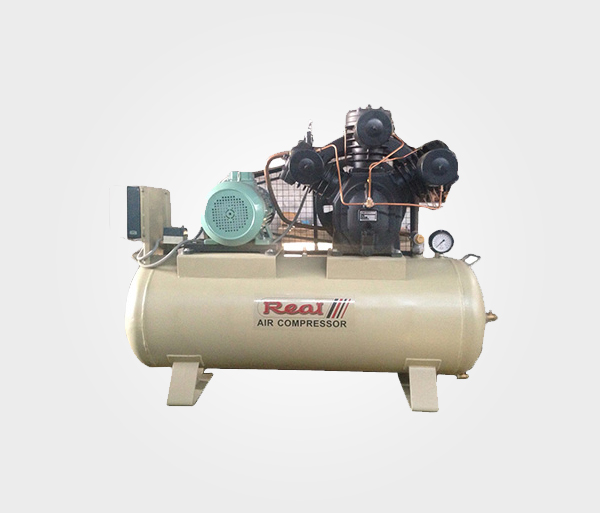

Single Stage compressors are designed for low pressure Application. These compressors have cylinders of same size. Configured in space-saving stationary and portable models, these durable compressors are a favourite with in the construction industry.

Features

  • Efficient finger valves that are easy to maintain
  • Industrial-quality cast iron construction.
  • 100% continuous duty applications.
  • Reliable high-speed valve design.
  • Fully-balanced crankshaft that reduces vibration.
  • 135 psi max. discharge pressure.
  • Honda engine-driven wheel.
  • Electric-Driven wheel.

    • Specification

    MODEL MOTOR Bore X Stroke (INCH) No. of CYLINDER Receiver Litre Max Pressure Piston Displacement
    H.P. K.W. Psig Kg/cm2 Cfm Ltr/min
    240 3.0 2.20 3" & 3" X 2.75" 2 150 80 5.62 14.85 420
    249 5.0 3.70 4" & 4" X 2.75" 2 200 80 5.62 23.91 675
    249 7.5 5.50 4" & 4" X 2.75" 2 200 80 5.62 34.60 980
    260 10.0 7.50 5" & 5" X 3.5" 2 225 80 5.62 52.80 1495
    12S2 12.5 9.30 5.5" & 5.5" X 4" 2 300 40 2.81 88.00 2490
    12S2 15.0 11.0 5.5" & 5.5" X 4" 2 300 40 2.81 95.40 2700
    20S2 15.0 11.0 5.5" & 5.5" & 5.5" X 4" 3 500 40 2.81 99.00 2800
    20S2 20.0 15.0 5.5" & 5.5" & 5.5" X 4" 3 500 40 2.81 140.15 3970

    We are leading manufacturer, exporter and supplier of single stage air compressor, air compressor, air compressor single stage in ahmedabad, gujarat, india.
